OSCILLATOR

Oscillator > Stratum-3 TCXO (Temperature Compensated Crystal Oscillator)

Model


Type

Size (mm)

Freq. (kHz)

Voltage (V)

Output

Freq. Stability (ppm)

Specs

QTS750

SMD Seam Sealing

7.0 x 5.0 x 2.0

10 to 52

3.3

Clipped Sinewave

±0.1, ±0.28, ±0.50 (-40 to 85°C)

QTS750C

SMD Seam Sealing

7.0 x 5.0 x 2.0

10 to 52

3.3

CMOS

±0.1, ±0.28, ±0.5, ±1.0 (-40 to 85°C)

QTS532

SMD Seam Sealing

5.0 x 3.2 x 2.1

10 to 52

3.3

Clipped Sinewave

±0.1, ±0.28, ±0.5 (-40 to 85°C)

QTS532C

SMD Seam Sealing

5.0 x 3.2 x 2.1

10 to 52

3.3

CMOS

±0.1, ±0.28, ±0.5 (-40 to 85°C)

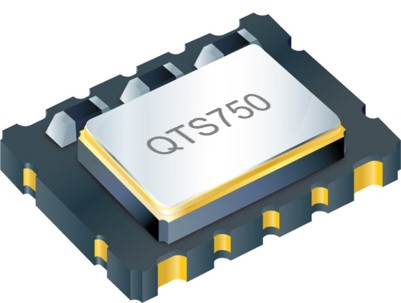

Model :

QTS750

Image :

Type :

SMD Seam Sealing

Size (mm) :

7.0 x 5.0 x 2.0

Freq. (kHz) :

10 to 52

Voltage (V) :

3.3

Output :

Clipped Sinewave

Freq. Stability (ppm) :

±0.1, ±0.28, ±0.50 (-40 to 85°C)

Specs :

Model :

QTS750C

Image :

Type :

SMD Seam Sealing

Size (mm) :

7.0 x 5.0 x 2.0

Freq. (kHz) :

10 to 52

Voltage (V) :

3.3

Output :

CMOS

Freq. Stability (ppm) :

±0.1, ±0.28, ±0.5, ±1.0 (-40 to 85°C)

Specs :

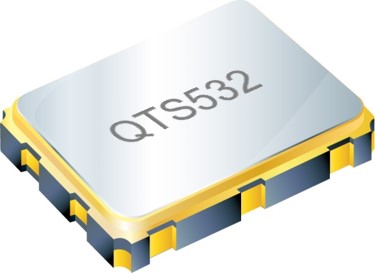

Model :

QTS532

Image :

Type :

SMD Seam Sealing

Size (mm) :

5.0 x 3.2 x 2.1

Freq. (kHz) :

10 to 52

Voltage (V) :

3.3

Output :

Clipped Sinewave

Freq. Stability (ppm) :

±0.1, ±0.28, ±0.5 (-40 to 85°C)

Specs :

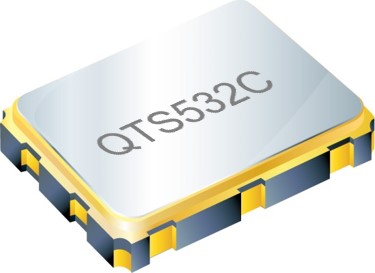

Model :

QTS532C

Image :

Type :

SMD Seam Sealing

Size (mm) :

5.0 x 3.2 x 2.1

Freq. (kHz) :

10 to 52

Voltage (V) :

3.3

Output :

CMOS

Freq. Stability (ppm) :

±0.1, ±0.28, ±0.5 (-40 to 85°C)

Specs :
