CRYSTAL

Crystal > kHz

Model


Type

Size (mm)

Freq. (kHz)

Freq. Tolerance @25°C (ppm)

Load (pF)

Temp (°C)

Specs

QT15

DIP Cylinder

Φ1.5 × 5.1

32.768

±20

12.5

20 to 70

QT26

DIP Cylinder

Φ2.0 × 6.2

32.768

±20

6.0 / 12.5

-20 to 70

QT26V

DIP Cylinder

Φ2.0 × 6.2

30 to 100

±30

12.5

-20 to 70

QT26S

SMD Cylinde

Φ2.0 × 6.1

32.768

±10 / ±20

6.0 / 12.5

-40 to 85

QT26J

SMD Jacket

8.6x2.7

32.768

±10 / ±20

6.0 / 12.5

-40 to 85

QT26V

SMD Plastic Package

8.0 × 3.8

30 to 100

±20 / ±30

12.5

-40 to 85

QT3CD

SMD Plastic Package

8.0 × 3.8

32.768

±5 / ±10 / ±20

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT1M

SMD Plastic Package

6.9 × 1.4

32.768

±20 / ±30 / ±50

7.0 / 9.0 / 12.5

-40 to 85

QT3C

SMD Ceramic Package

5.1x1.9

32.768

±10±20

6.0 7.0 9.0 12.5

-40 to 85

QT4C

SMD Ceramic Package

4.2 × 1.6

32.768

±10 / ±20

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT3CT

SMD Ceramic Package

3.2 × 1.5

32.768

±20

4.0 / 6.0 / 7.0 / 8.0 / 9.0 / 12.5

-40 to 85

QT3C

SMD Ceramic Package

3.2 × 1.5

32.768

±10 / ±20 / ±30 / ±50

6.0 / 7.0 / 9.0 / 12.5

-40 to 85 / -40 to 125

QT3CL

SMD Ceramic Package (Low ESR)

3.2 × 1.5

32.768

±10 / ±20

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT3CD

SMD Ceramic Package

3.2 × 1.5

32.768

±5 / ±10 / ±20

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT3CDL

SMD Ceramic Package (Low ESR)

3.2 × 1.5

32.768

±10 / ±20

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT2C

SMD Ceramic Package

2.0 × 1.2

32.768

±10 / ±20 / ±30 / ±50

4.0 / 6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT2CL

SMD Ceramic Package (Low ESR)

2.0 × 1.2

32.768

±20

4.0 / 12.5

-40 to 85

QT1C

SMD Ceramic Package

1.6 × 1.0

32.768

±20 / ±30 / ±50

6.0 / 7.0 / 9.0 / 12.5

-40 to 85

QT1CS

SMD Ceramic Package

1.2 × 1.0

32.768

±20

7.0 / 12.5

-40 to 85

Model :

QT15

Image :

Type :

DIP Cylinder

Size (mm) :

Φ1.5 × 5.1

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20

Load (pF) :

12.5

Temp (°C) :

20 to 70

Specs :

Model :

QT26

Image :

Type :

DIP Cylinder

Size (mm) :

Φ2.0 × 6.2

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20

Load (pF) :

6.0 / 12.5

Temp (°C) :

-20 to 70

Specs :

Model :

QT26V

Image :

Type :

DIP Cylinder

Size (mm) :

Φ2.0 × 6.2

Freq. (kHz) :

30 to 100

Freq. Tolerance @25°C (ppm) :

±30

Load (pF) :

12.5

Temp (°C) :

-20 to 70

Specs :

Model :

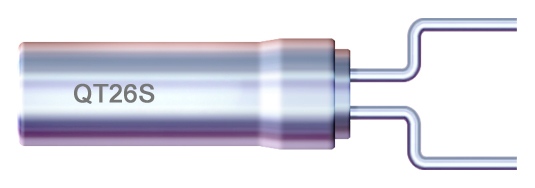

QT26S

Image :

Type :

SMD Cylinde

Size (mm) :

Φ2.0 × 6.1

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20

Load (pF) :

6.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

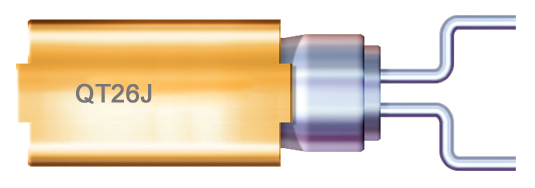

QT26J

Image :

Type :

SMD Jacket

Size (mm) :

8.6x2.7

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20

Load (pF) :

6.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT26V

Image :

Type :

SMD Plastic Package

Size (mm) :

8.0 × 3.8

Freq. (kHz) :

30 to 100

Freq. Tolerance @25°C (ppm) :

±20 / ±30

Load (pF) :

12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT3CD

Image :

Type :

SMD Plastic Package

Size (mm) :

8.0 × 3.8

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±5 / ±10 / ±20

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT1M

Image :

Type :

SMD Plastic Package

Size (mm) :

6.9 × 1.4

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20 / ±30 / ±50

Load (pF) :

7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT3C

Image :

Type :

SMD Ceramic Package

Size (mm) :

5.1x1.9

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10±20

Load (pF) :

6.0 7.0 9.0 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT4C

Image :

Type :

SMD Ceramic Package

Size (mm) :

4.2 × 1.6

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

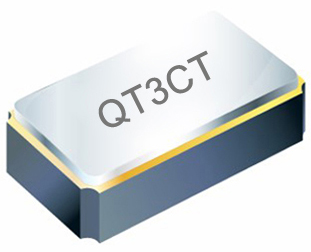

QT3CT

Image :

Type :

SMD Ceramic Package

Size (mm) :

3.2 × 1.5

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20

Load (pF) :

4.0 / 6.0 / 7.0 / 8.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT3C

Image :

Type :

SMD Ceramic Package

Size (mm) :

3.2 × 1.5

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20 / ±30 / ±50

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85 / -40 to 125

Specs :

Model :

QT3CL

Image :

Type :

SMD Ceramic Package (Low ESR)

Size (mm) :

3.2 × 1.5

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT3CD

Image :

Type :

SMD Ceramic Package

Size (mm) :

3.2 × 1.5

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±5 / ±10 / ±20

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT3CDL

Image :

Type :

SMD Ceramic Package (Low ESR)

Size (mm) :

3.2 × 1.5

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT2C

Image :

Type :

SMD Ceramic Package

Size (mm) :

2.0 × 1.2

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±10 / ±20 / ±30 / ±50

Load (pF) :

4.0 / 6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT2CL

Image :

Type :

SMD Ceramic Package (Low ESR)

Size (mm) :

2.0 × 1.2

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20

Load (pF) :

4.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT1C

Image :

Type :

SMD Ceramic Package

Size (mm) :

1.6 × 1.0

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20 / ±30 / ±50

Load (pF) :

6.0 / 7.0 / 9.0 / 12.5

Temp (°C) :

-40 to 85

Specs :

Model :

QT1CS

Image :

Type :

SMD Ceramic Package

Size (mm) :

1.2 × 1.0

Freq. (kHz) :

32.768

Freq. Tolerance @25°C (ppm) :

±20

Load (pF) :

7.0 / 12.5

Temp (°C) :

-40 to 85

Specs :
