OSCILLATOR

Oscillator > kHz CMOS

Model


Type

Size (mm)

Freq. (kHz)

Voltage (V)

Output

Freq. Stability (ppm)

Specs

QTK532

SMD Seam Sealing

5.0 × 3.2 × 1.2

32.768

1.8 / 2.5 / 3.3

CMOS

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

QTK325

SMD Seam Sealing

3.2 × 2.5 × 1.0

32.768

1.8 / 2.5 / 3.3

CMOS

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

QTK252

SMD Seam Sealing

2.5 × 2.0 × 0.8

32.768

1.8 / 2.5 / 3.3

CMOS

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

QTK216

SMD Seam Sealing

2.0 × 1.6 × 0.76

32.768

1.8 / 2.5 / 3.3

CMOS

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

QTK161

SMD Seam Sealing

1.65 × 1.25 × 0.58

32.768

1.8 / 2.5 / 3.3

CMOS

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Model :

QTK532

Image :

Type :

SMD Seam Sealing

Size (mm) :

5.0 × 3.2 × 1.2

Freq. (kHz) :

32.768

Voltage (V) :

1.8 / 2.5 / 3.3

Output :

CMOS

Freq. Stability (ppm) :

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Specs :

Model :

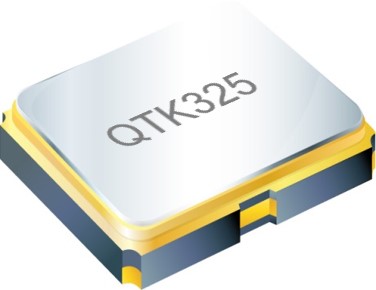

QTK325

Image :

Type :

SMD Seam Sealing

Size (mm) :

3.2 × 2.5 × 1.0

Freq. (kHz) :

32.768

Voltage (V) :

1.8 / 2.5 / 3.3

Output :

CMOS

Freq. Stability (ppm) :

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Specs :

Model :

QTK252

Image :

Type :

SMD Seam Sealing

Size (mm) :

2.5 × 2.0 × 0.8

Freq. (kHz) :

32.768

Voltage (V) :

1.8 / 2.5 / 3.3

Output :

CMOS

Freq. Stability (ppm) :

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Specs :

Model :

QTK216

Image :

Type :

SMD Seam Sealing

Size (mm) :

2.0 × 1.6 × 0.76

Freq. (kHz) :

32.768

Voltage (V) :

1.8 / 2.5 / 3.3

Output :

CMOS

Freq. Stability (ppm) :

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Specs :

Model :

QTK161

Image :

Type :

SMD Seam Sealing

Size (mm) :

1.65 × 1.25 × 0.58

Freq. (kHz) :

32.768

Voltage (V) :

1.8 / 2.5 / 3.3

Output :

CMOS

Freq. Stability (ppm) :

±25 (−10 to 70°C)
±25, ±50 (−40 to 85°C)

Specs :
