CRYSTAL

Crystal > kHz
Model
Type
Size
(mm)
Freq.
(kHz)
Freq. Tolerance
@25°C
(ppm)
Load
(pF)
Temp.
(°C)
Specs
QT15
DIP Cylinder
Φ1.5x5.1
32.768
±20
12.5
-20 to 70
QT26
DIP Cylinder Φ2.0x6.2 32.768
±20
6.0
12.5
 -20 to 70
QT26V
DIP Cylinder Φ2.0x6.2 30 to 100
±30
 12.5 -20 to 70
QT26S
SMD Cylinder Φ2.0x6.1 32.768 ±10
±20
6.0
12.5
 -40 to 85
QT26J
SMD Jacket 8.6x2.7 32.768
±10
±20
6.0
12.5
 -40 to 85
QT2V
SMD Plastic Package 8.0x3.8 30 to 100
±20
±30
 12.5 -40 to 85
QT2M
SMD Plastic Package 8.0x3.8 32.768
±5
±10
±20
6.0
7.0
9.0
12.5
 -40 to 85
QT1M
SMD Plastic Package 6.9x1.4 32.768
±20
±30
±50
7.0
9.0
12.5
 -40 to 85
QT5C
SMD Ceramic Package
 5.1x1.9 32.768
±10
±20
6.0
7.0
9.0
12.5
 -40 to 85
QT4C
SMD Ceramic
Package
 4.2x1.6 32.768
±10
±20
6.0
7.0
9.0
12.5
 -40 to 85
QT3CL
SMD Ceramic
Package
 3.2x1.5 32.768
±10
±20
6.0
7.0
9.0
12.5
 -40 to 85

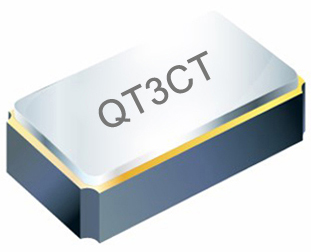

QT3CT
SMD Ceramic
Package
 3.2x1.5 32.768
±20
4.0
6.0
7.0
8.0
9.0
12.5
 -40 to 85
QT3C
SMD Ceramic
Package
 3.2x1.5 32.768
±10
±20
±30
±50
6.0
7.0
9.0
12.5
-40 to 85
-40 to 125
QT3CDL
SMD Ceramic
Package
-Low ESR-
 3.2x1.5 32.768
±10
±20
6.0
7.0
9.0
12.5
-40 to 85
QT3CD
SMD Ceramic
Package
 3.2x1.5 32.768
±5
±10
±20
6.0
7.0
9.0
12.5
-40 to 85
QT2CL
SMD Ceramic
Package
-Low ESR-
 2.0x1.2 32.768
±20
4.0
12.5
 -40 to 85
QT2C
SMD Ceramic
Package
 2.0x1.2 32.768
±10
±20
±30
±50
4.0
6.0
7.0
9.0
12.5
 -40 to 85
QT1C
SMD Ceramic
Package
 1.6x1.0 32.768
±20
±30
±50
6.0
7.0
9.0
12.5
 -40 to 85
QT1CS
SMD Ceramic
Package
 1.2x1.0 32.768
±20
6.0
7.0
12.5
 -40 to 85
